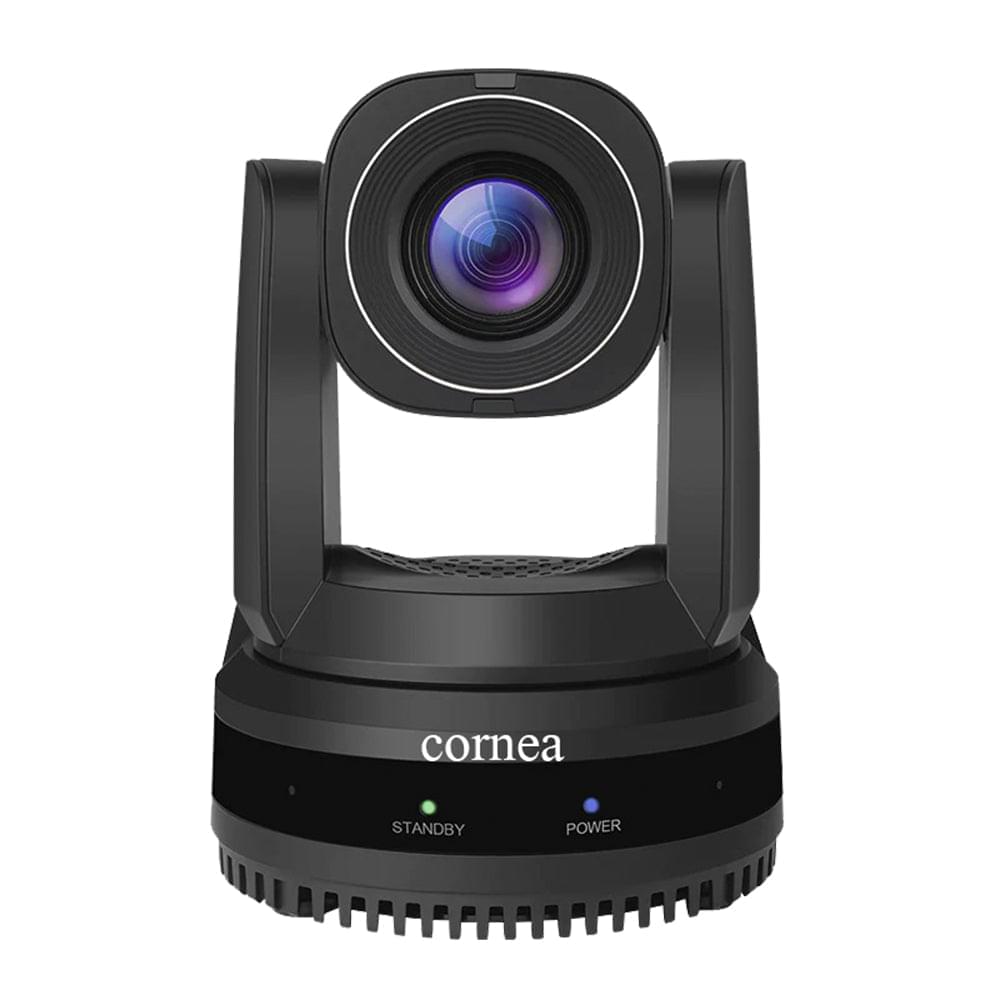

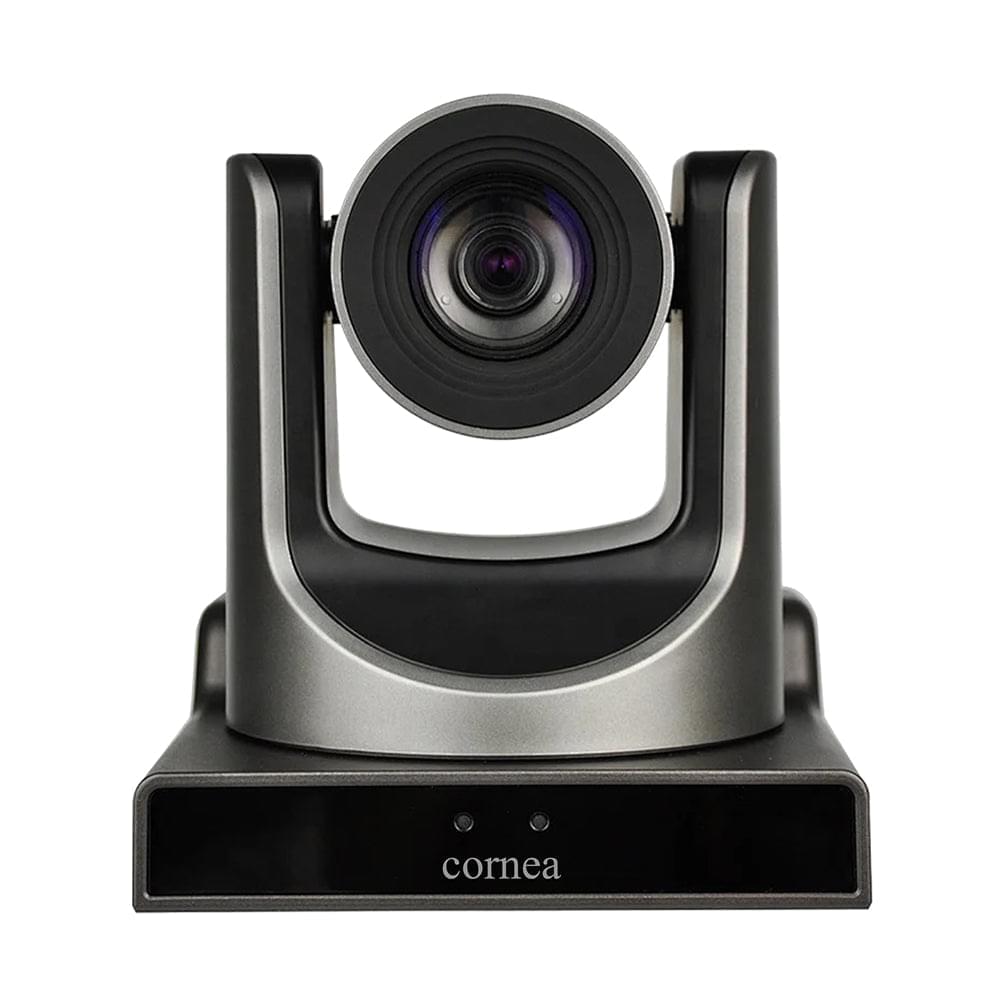

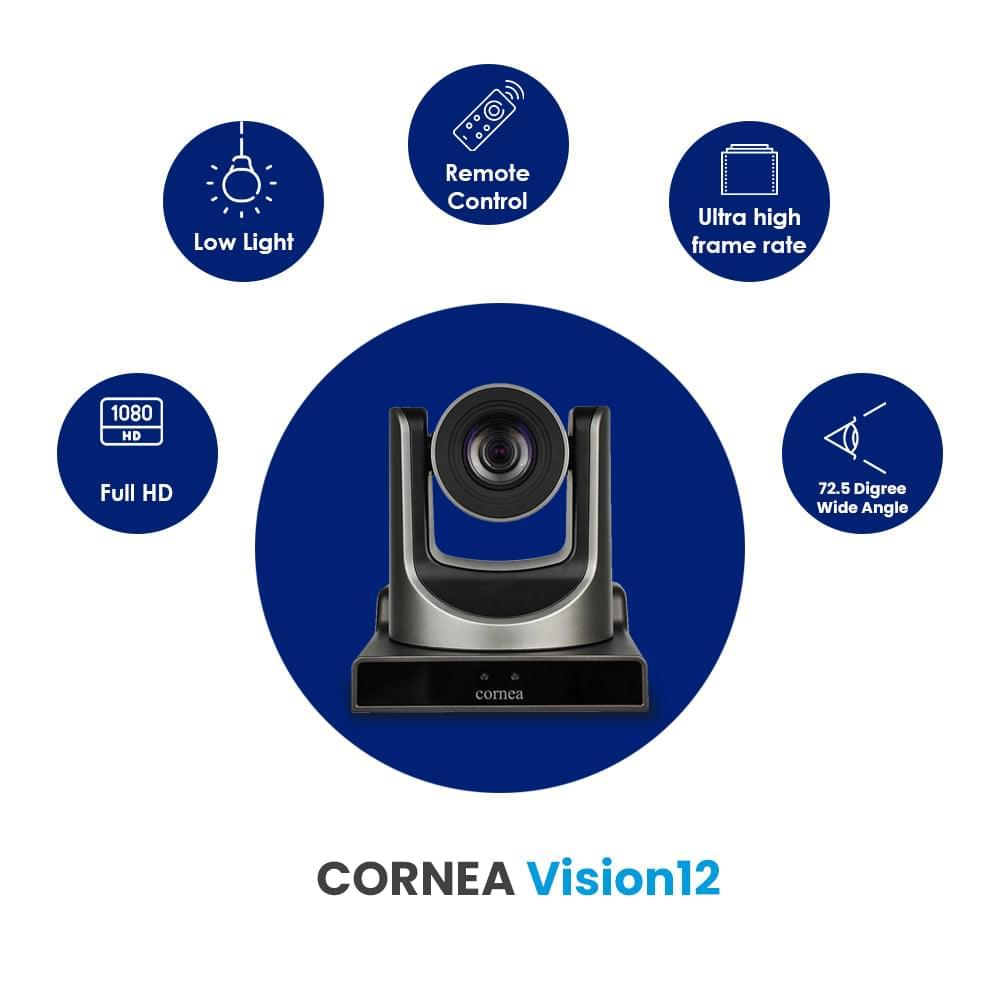

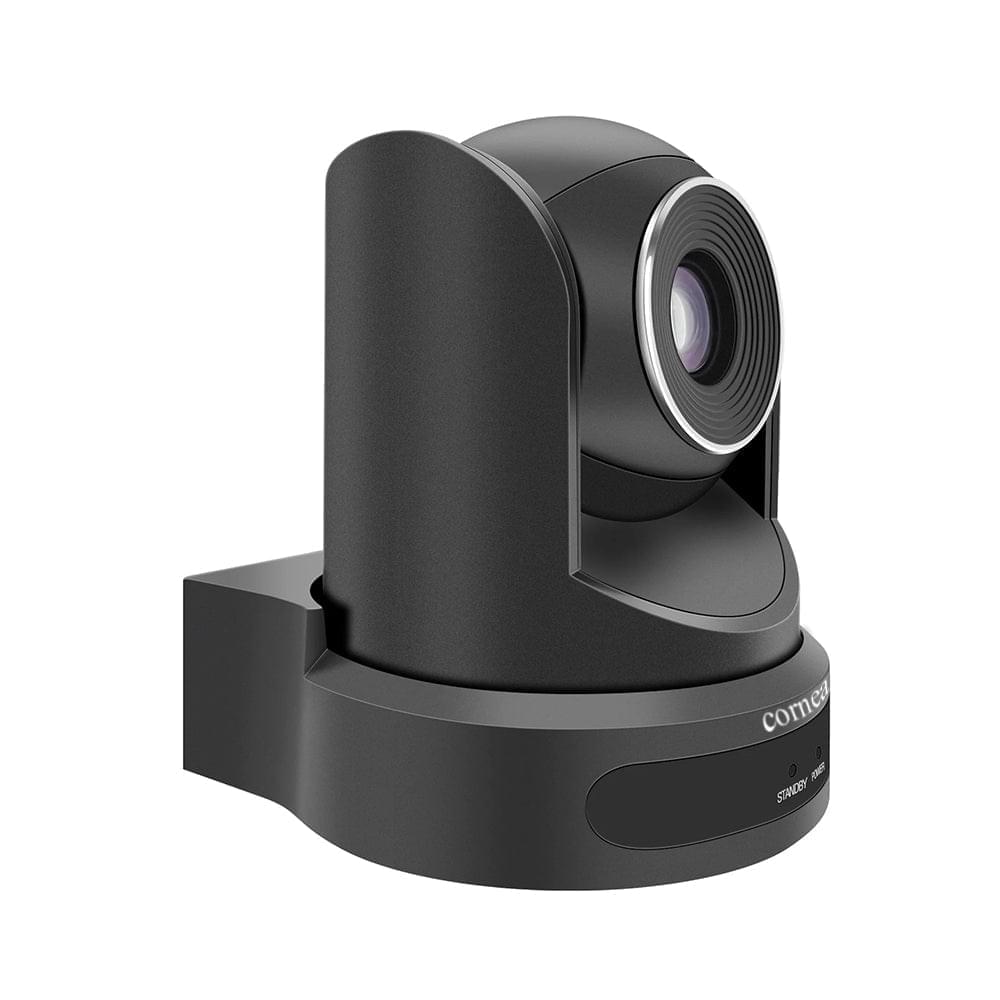

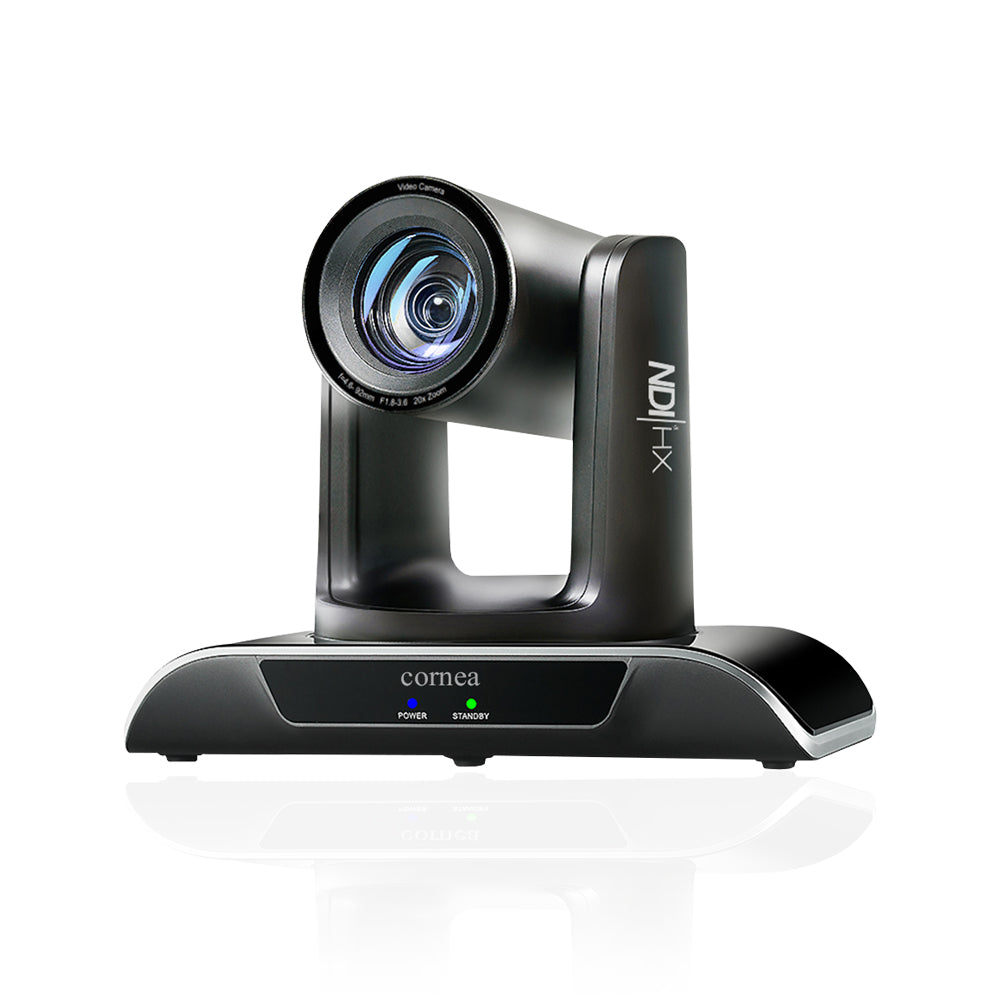

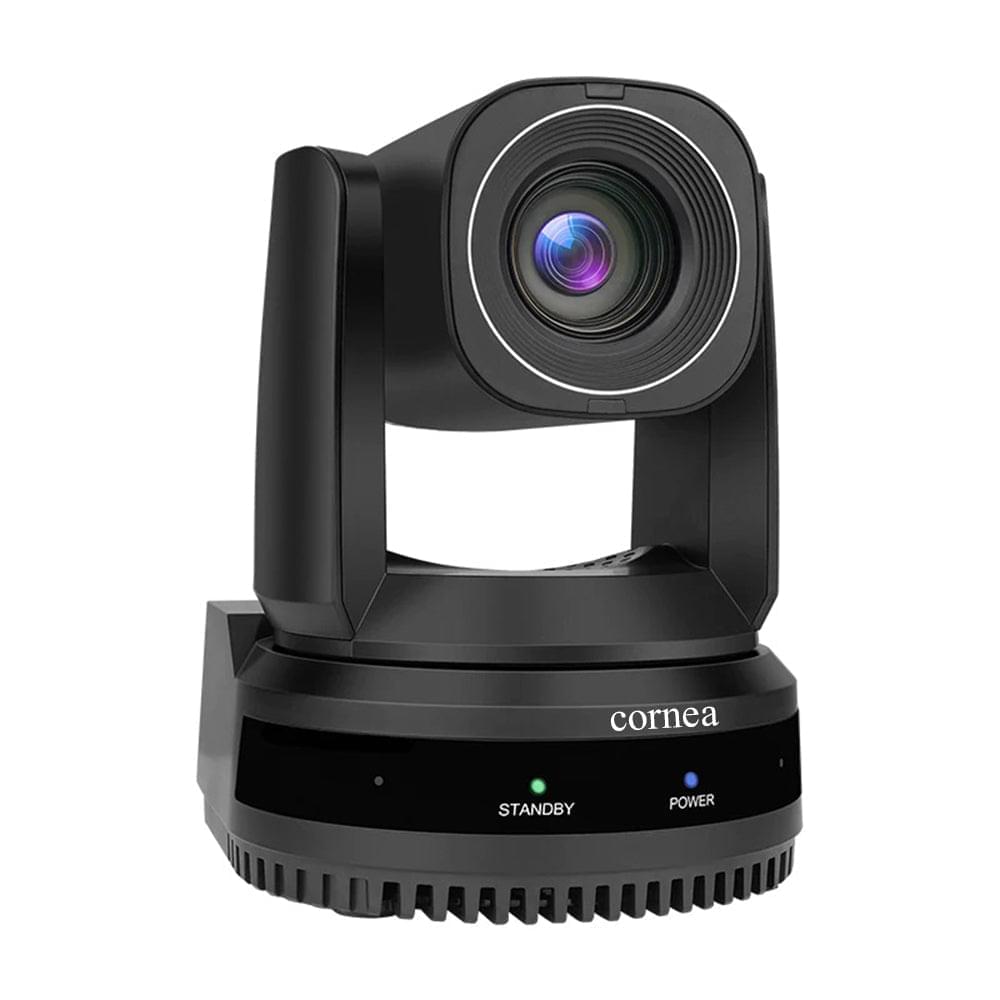

Cornea Vision12 PTZ Camera

Rs. 77,000.00

Brand:

Cornea

Availability:

Out of stock In stock

Description
Camera

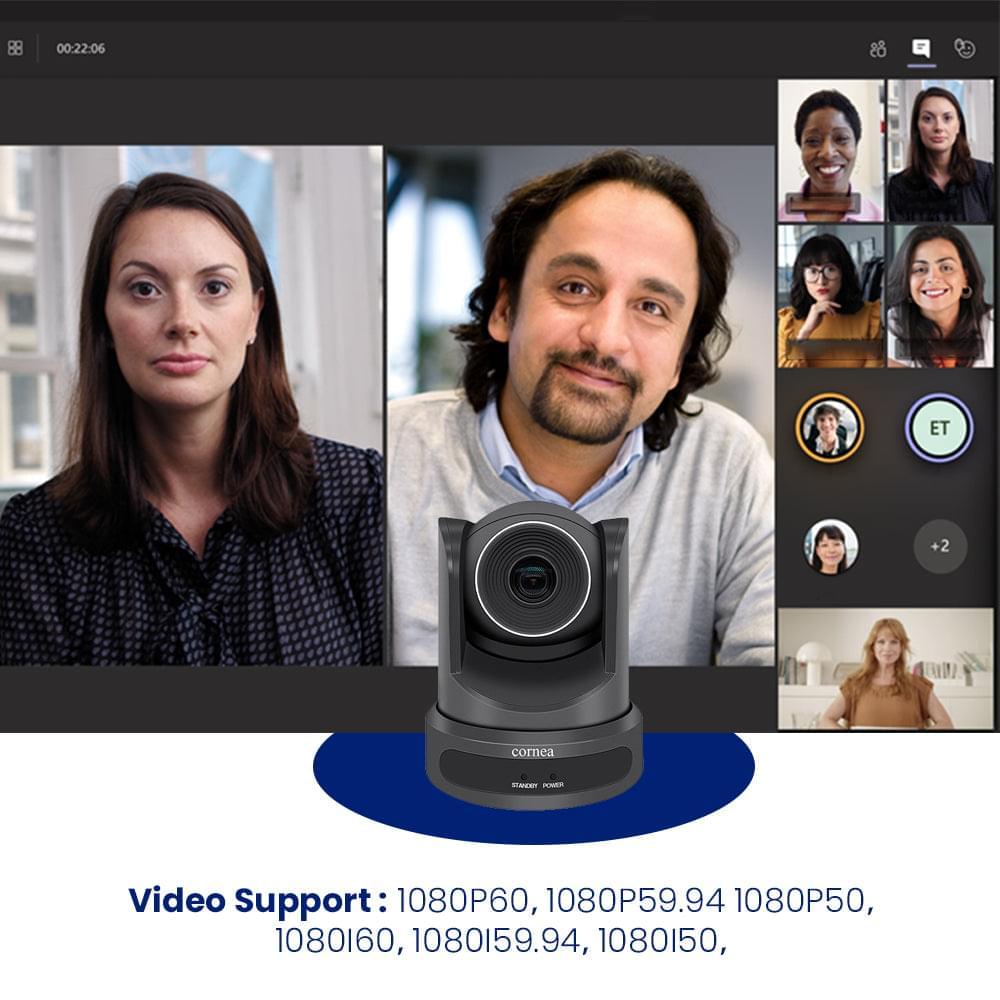

Video System: 1080P60，1080P50，1080P30，1080P25，720P60，720P50

Sensor: 1/2.8'', CMOS, Effective Pixel

Scanning Mode: Progressive scanning

Lens : 12x, f3.5mm ~ 42.3mm, F1.8 ~ F2.8

Digital Zoom: 16xMinimal Illumination 0.5Lux @ (F1.8, AGC ON)

Shutter: 1/30s ~ 1/10000s

White Balance: Automatic, indoor, outdoor, one touch, manual，VAR

Backlight Compensation : Supported

Digital Noise Reduction: 2D&3D digital noise reduction

Video S/N: ≥55dB

Horizontal Angle of View : 72.5° ~ 6.9°

Horizontal Angle of View : 44.8° ~ 3.9°

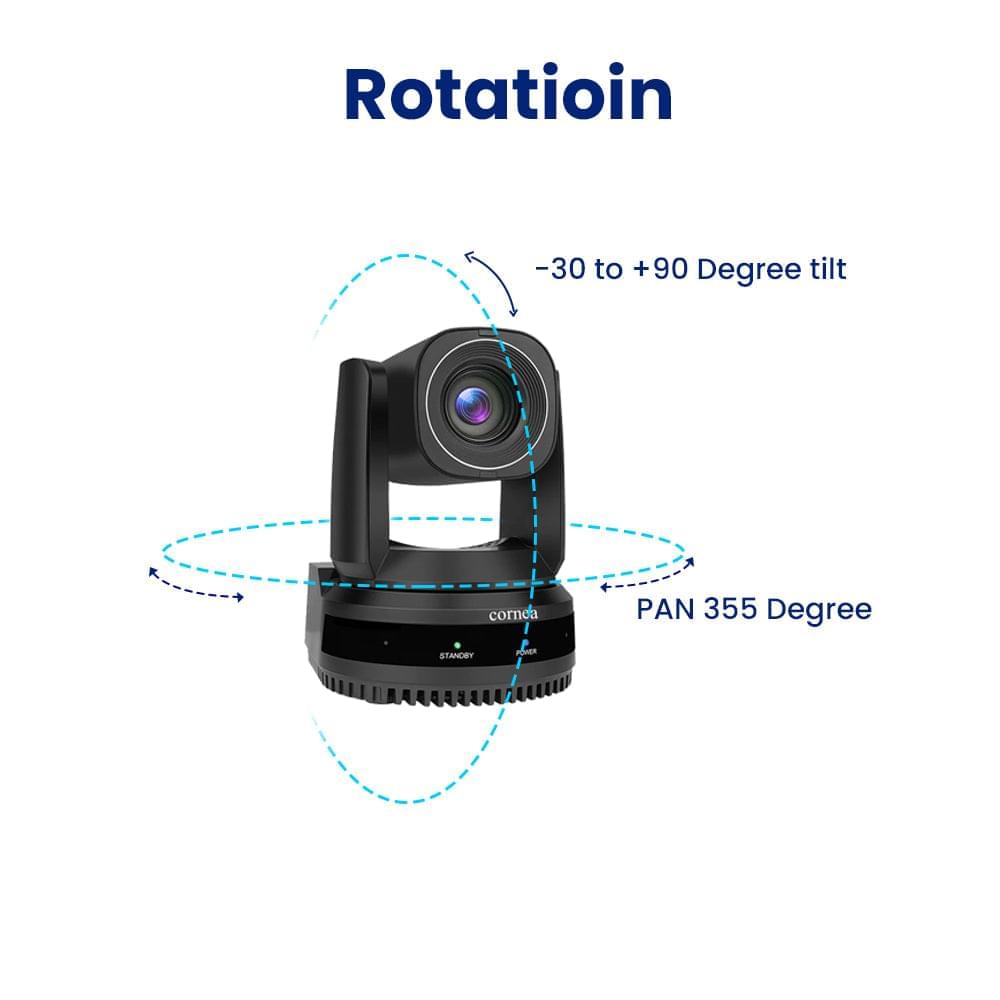

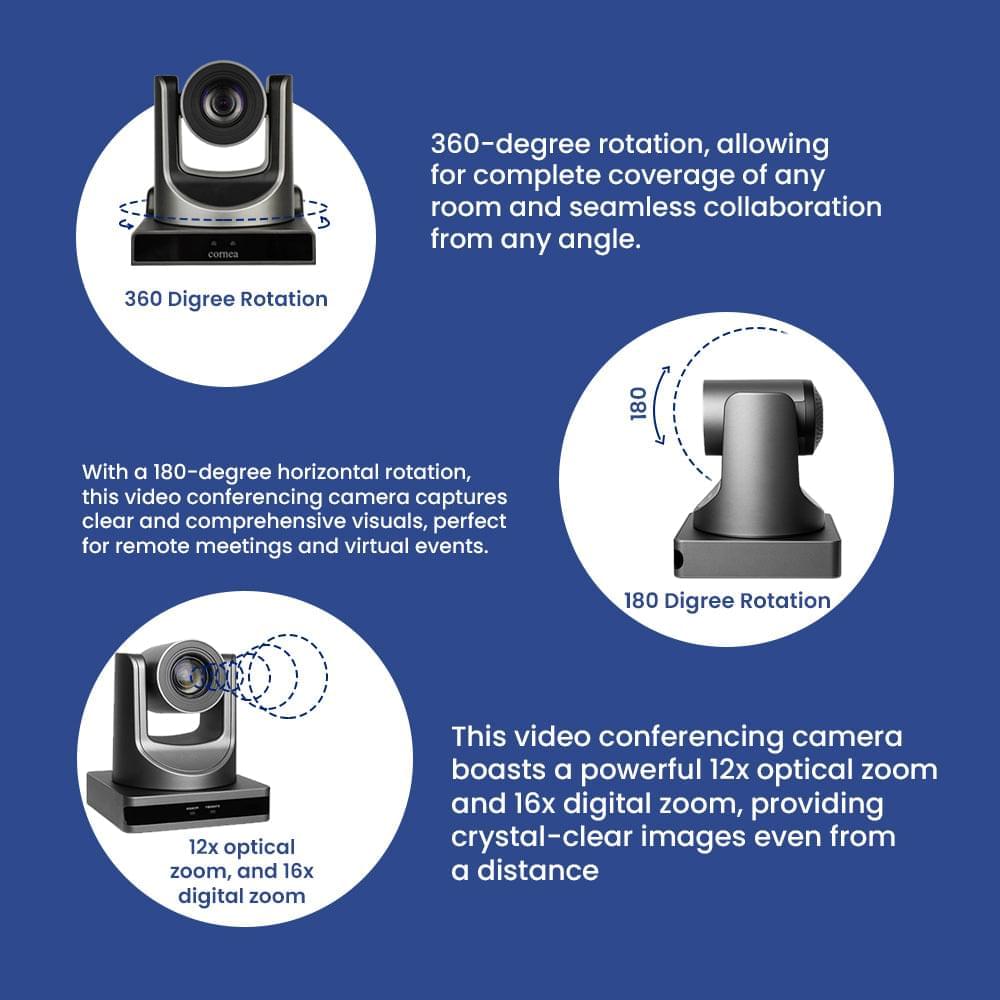

Horizontal Rotation Range : ±170°

Vertical Rotation Range : -30° ~ +90°

Pan Speed Range : 2.7° ~ 35.7°/s

Tilt Speed Range : 2.7° ~ 31.5°/s

H & V Flip : Supported

Image Freeze : Supported

Number of Preset : 255

Preset Accuracy : 0.1°

Network Features

Video Compression；H.264/MJEPG

Video Stream:First streaming, second streaming

Main Stream Resolution :1920x1080,1280x720,1024x576,960x540,640x480,640x360

Sub Stream Resolution:1280x720,1024x576,720x480,720x408,640x360,320x240，320x180

Video Bit Rate:32Kbps ~ 20480Kbps

Bit Rate Type:Variable bit rate，Fixed bit rate

Frame Rate:50Hz

Audio Compression:AAC

Audio Bit Rate:96Kbps, 128Kbps, 256Kbps

Support protocols:TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP, Multicast and so on
USB Features

Operate System: Windows 7, Windows 8, Windows 10, Mac OS X, Linux, Android

Color System / Compression: YUY2 / H.264 / MJPEG

Video Format YUY2 (isochronous mode): MAX 1080P@60fps;

Audio on USB: Supported

USB Video Communication Protocol: UVC 1.1~1.5

UVC PTZ: Supported

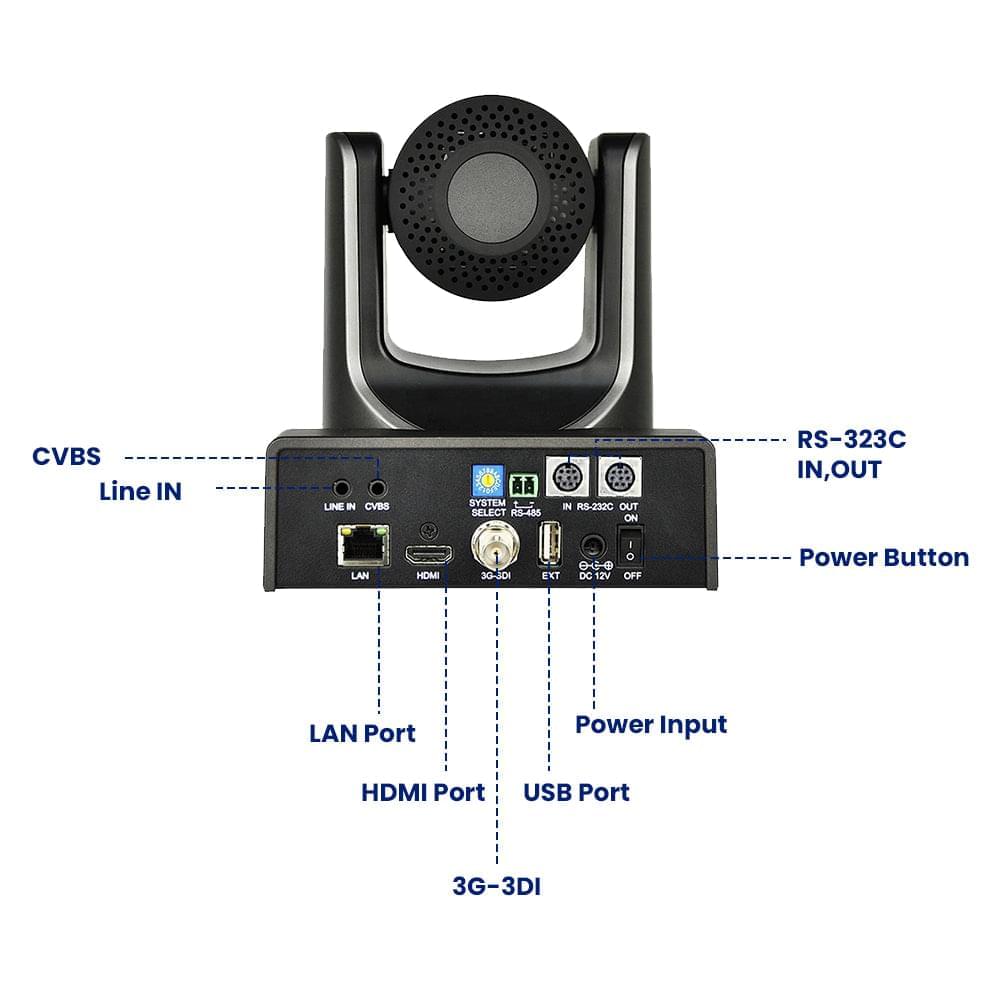

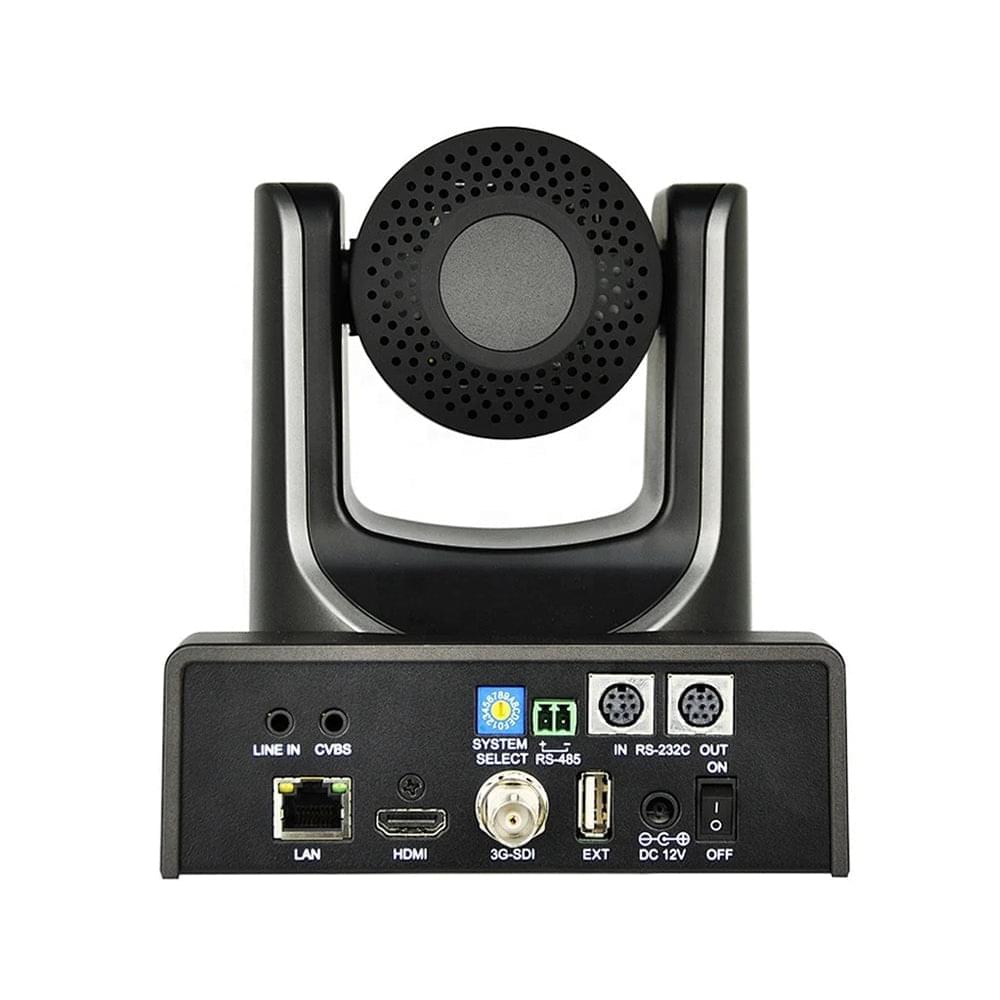

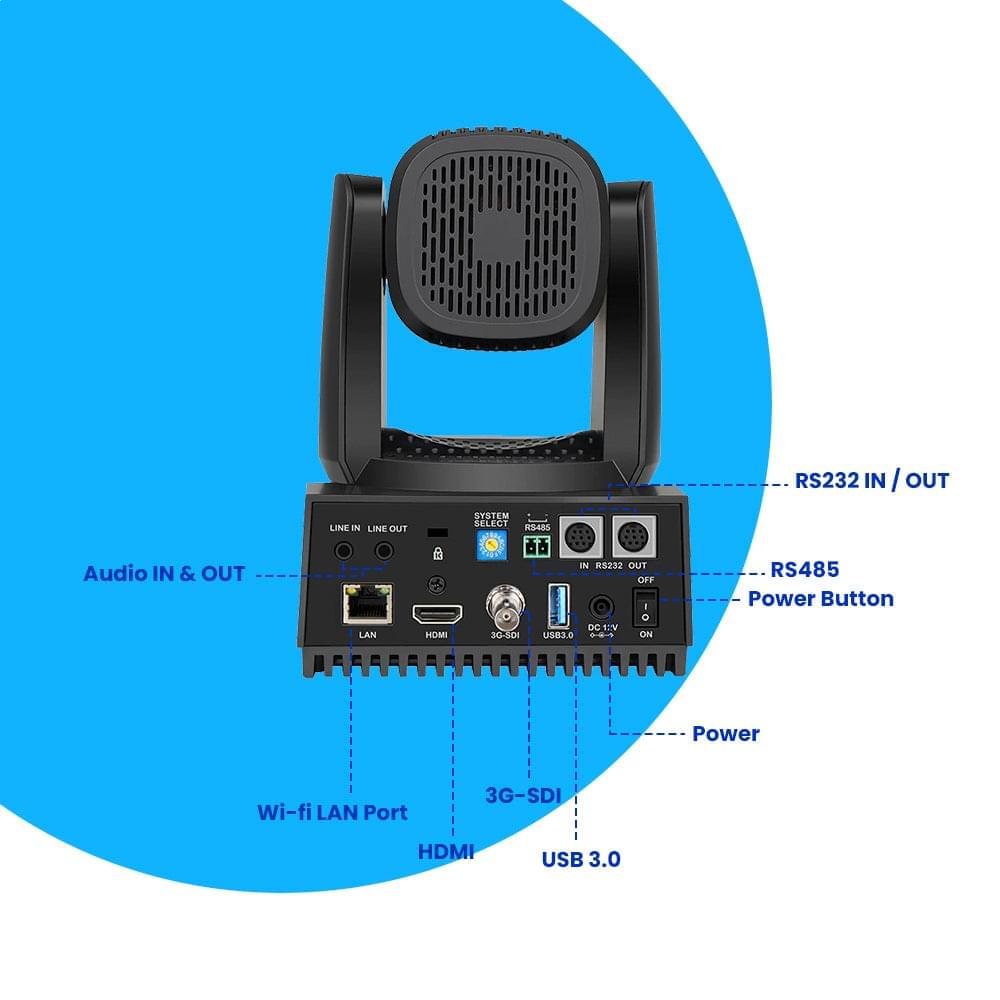

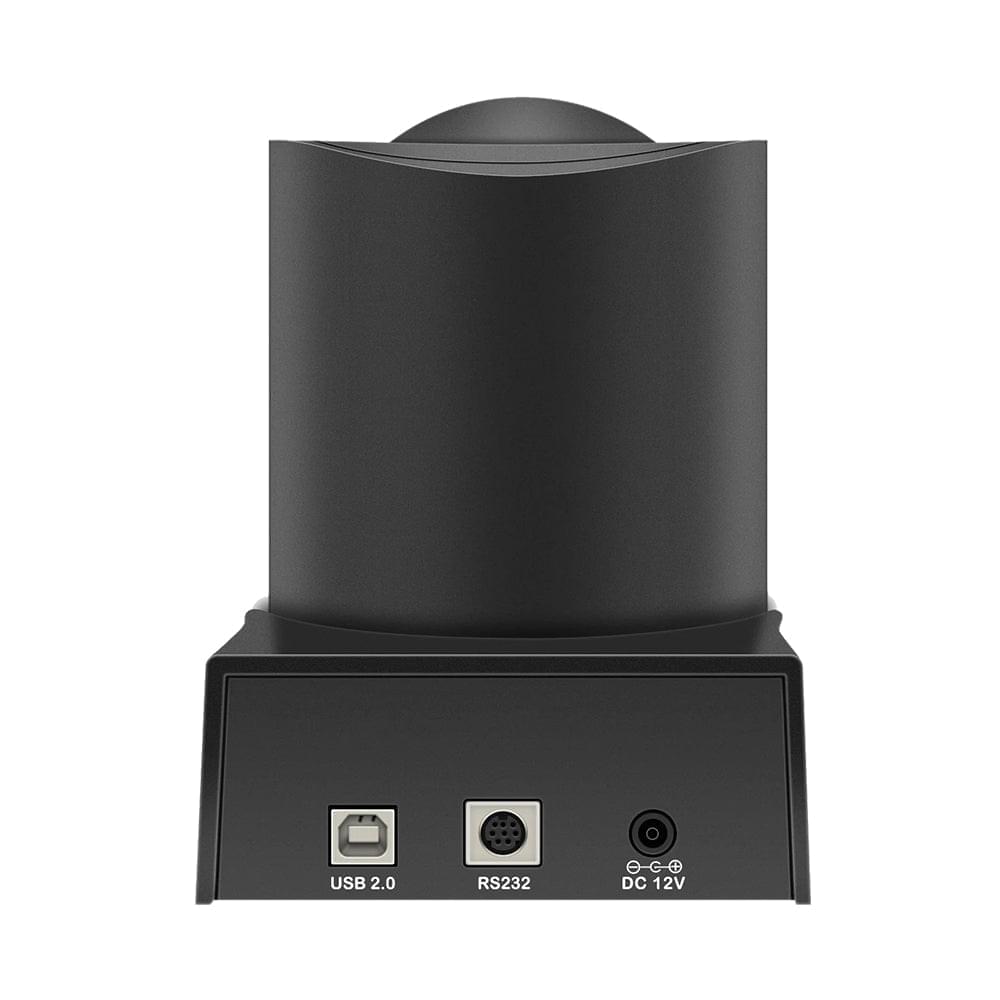

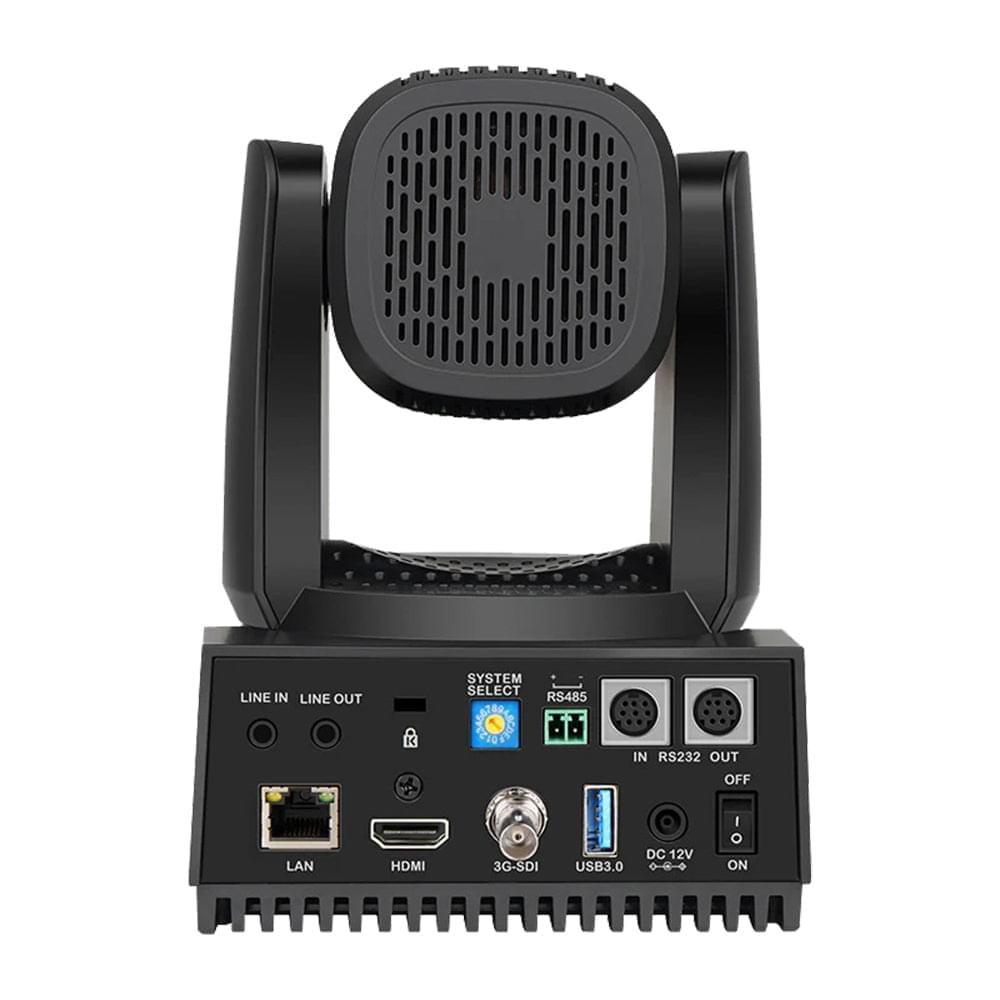

Input/Output Interface

USB :1-ch USB3.0, Type-C

HD Output:1xHDMI 1.4b

Network Interface:1xRJ45

Audio Interface:1-ch 3.5mm Audio Interface, Line In

Communication Interface:1xRS232 In

Power Jack:JEITA（DC IN 12V）/USB Type-B（DC IN 5V）/PoE

Generic Specification

Input Voltage:DC 12V/DC 5V/PoE(802.3af)

Input Current :12V 1.0A(MAX)/5V 1.5A(MAX)

Operating Temperature:-10°C ~ 40°C

Storage Temperature:-40°C ~ 60°C

Power Consumption:MAX 12W

MTBF:>30000h

Size:144mm x 144mm x 167.9mm

Net Weight:1.4kg
Additional information

Vendor: Cornea
Type: camera
Reviews

Vendor:	Cornea
Type:	camera

Cornea Vision12 PTZ Camera

Rs. 77,000.00

Camera

Video System: 1080P60，1080P50，1080P30，1080P25，720P60，720P50
Sensor: 1/2.8'', CMOS, Effective Pixel
Scanning Mode: Progressive scanning
Lens : 12x, f3.5mm ~ 42.3mm, F1.8 ~ F2.8
Digital Zoom: 16xMinimal Illumination 0.5Lux @ (F1.8, AGC ON)
Shutter: 1/30s ~ 1/10000s
White Balance: Automatic, indoor, outdoor, one touch, manual，VAR
Backlight Compensation : Supported
Digital Noise Reduction: 2D&3D digital noise reduction
Video S/N: ≥55dB
Horizontal Angle of View : 72.5° ~ 6.9°
Horizontal Angle of View : 44.8° ~ 3.9°
Horizontal Rotation Range : ±170°
Vertical Rotation Range : -30° ~ +90°
Pan Speed Range : 2.7° ~ 35.7°/s
Tilt Speed Range : 2.7° ~ 31.5°/s
H & V Flip : Supported
Image Freeze : Supported
Number of Preset : 255
Preset Accuracy : 0.1°

Network Features

Video Compression；H.264/MJEPG
Video Stream:First streaming, second streaming
Main Stream Resolution :1920x1080,1280x720,1024x576,960x540,640x480,640x360
Sub Stream Resolution:1280x720,1024x576,720x480,720x408,640x360,320x240，320x180
Video Bit Rate:32Kbps ~ 20480Kbps
Bit Rate Type:Variable bit rate，Fixed bit rate
Frame Rate:50Hz
Audio Compression:AAC
Audio Bit Rate:96Kbps, 128Kbps, 256Kbps
Support protocols:TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP, Multicast and so on

USB Features

Operate System: Windows 7, Windows 8, Windows 10, Mac OS X, Linux, Android
Color System / Compression: YUY2 / H.264 / MJPEG
Video Format YUY2 (isochronous mode): MAX 1080P@60fps;
Audio on USB: Supported
USB Video Communication Protocol: UVC 1.1~1.5
UVC PTZ: Supported

Input/Output Interface

USB :1-ch USB3.0, Type-C
HD Output:1xHDMI 1.4b
Network Interface:1xRJ45
Audio Interface:1-ch 3.5mm Audio Interface, Line In
Communication Interface:1xRS232 In
Power Jack:JEITA（DC IN 12V）/USB Type-B（DC IN 5V）/PoE

Generic Specification

Input Voltage:DC 12V/DC 5V/PoE(802.3af)
Input Current :12V 1.0A(MAX)/5V 1.5A(MAX)
Operating Temperature:-10°C ~ 40°C
Storage Temperature:-40°C ~ 60°C
Power Consumption:MAX 12W
MTBF:>30000h
Size:144mm x 144mm x 167.9mm
Net Weight:1.4kg

Specification
Sensor	1/2.8'', CMOS, Effective Pixel: 2.07M
Lens	12x, f3.5mm ~ 42.3mm, F1.8 ~ F2.8
Digital Zoom	16x
Minimal Illumination	0.5Lux @ (F1.8, AGC ON)
Shutter	1/30s ~ 1/10000s

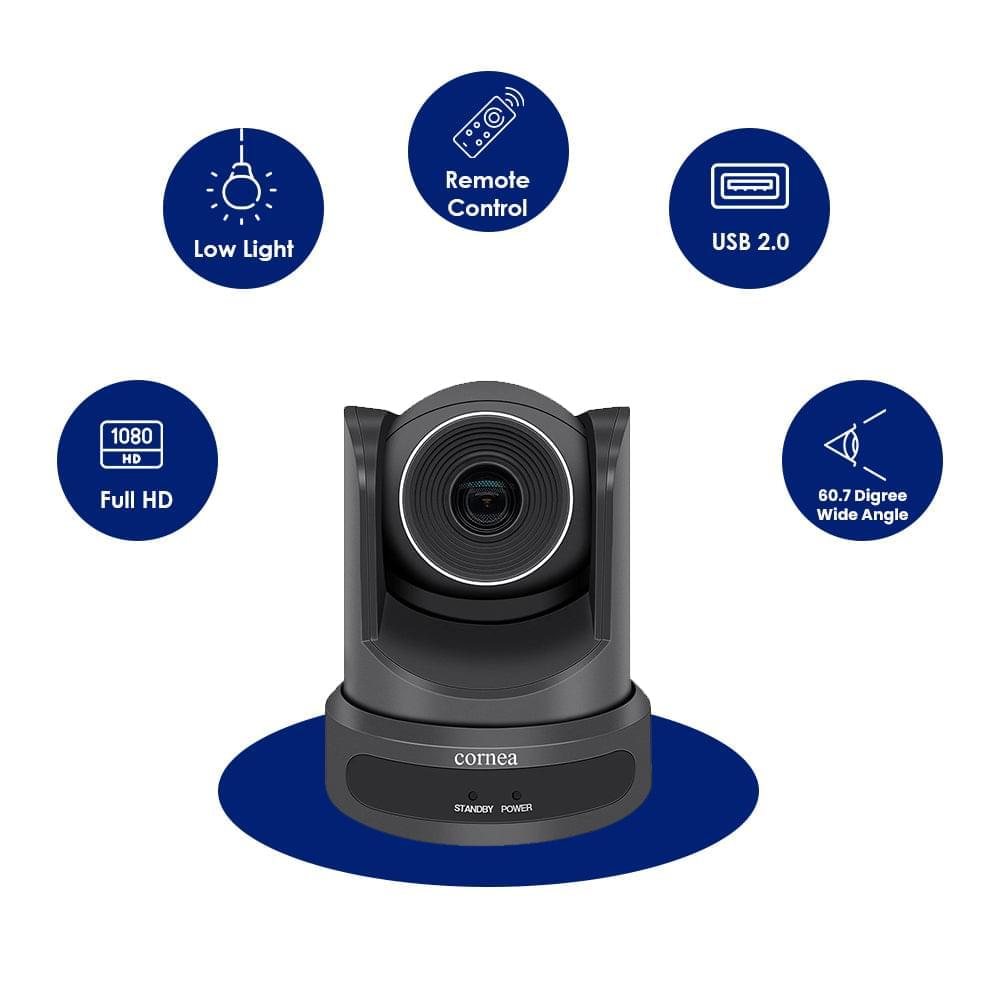

Remote Control

Multiple control modes, using RS232, RS485, network and USB to control the camera

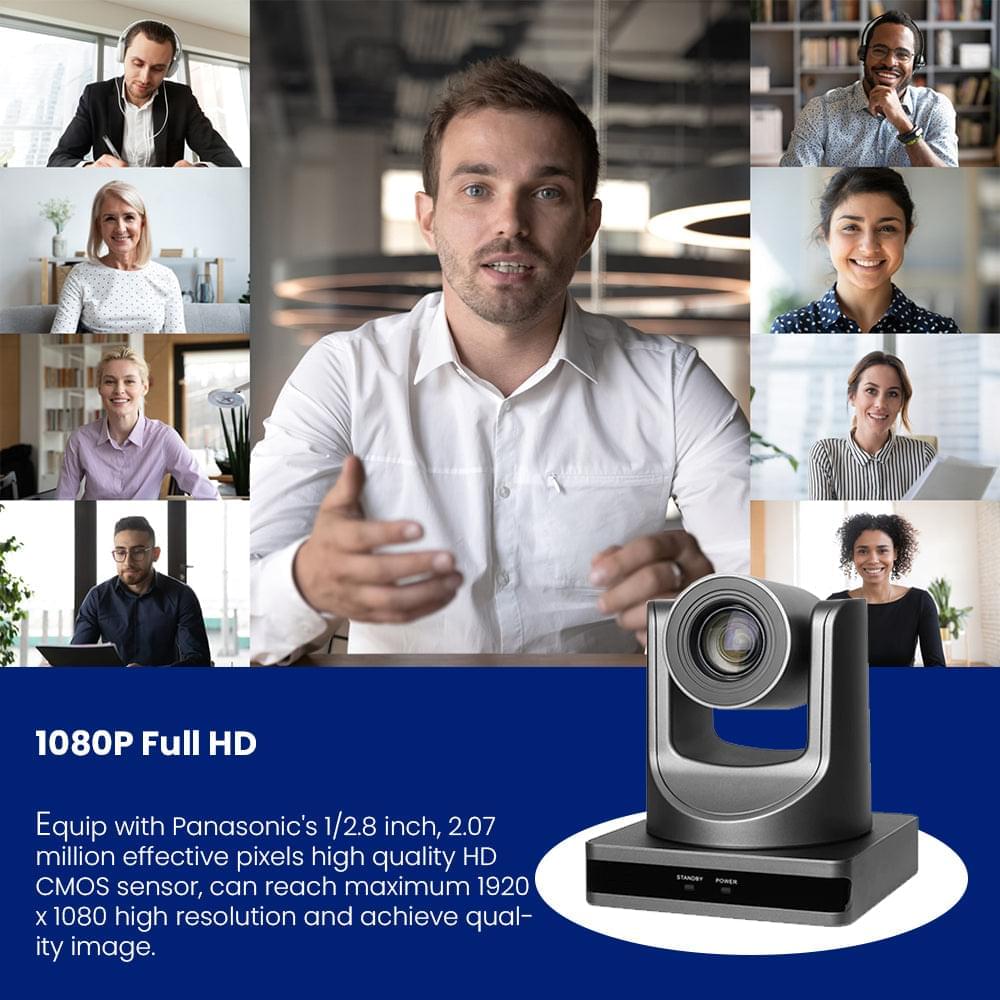

Full HD

Equip with Panasonic's 1/2.8 inch, 2.07 million effective pixels high quality HD CMOS sensor, can reach maximum 1920 x 1080 high resolution and achieve quality image.

Full Function USB Interface

Full function USB interface, compatible with USB3.0 and USB2.0, support audio, compressed video output and UVC v1.1~1.5 protocol.

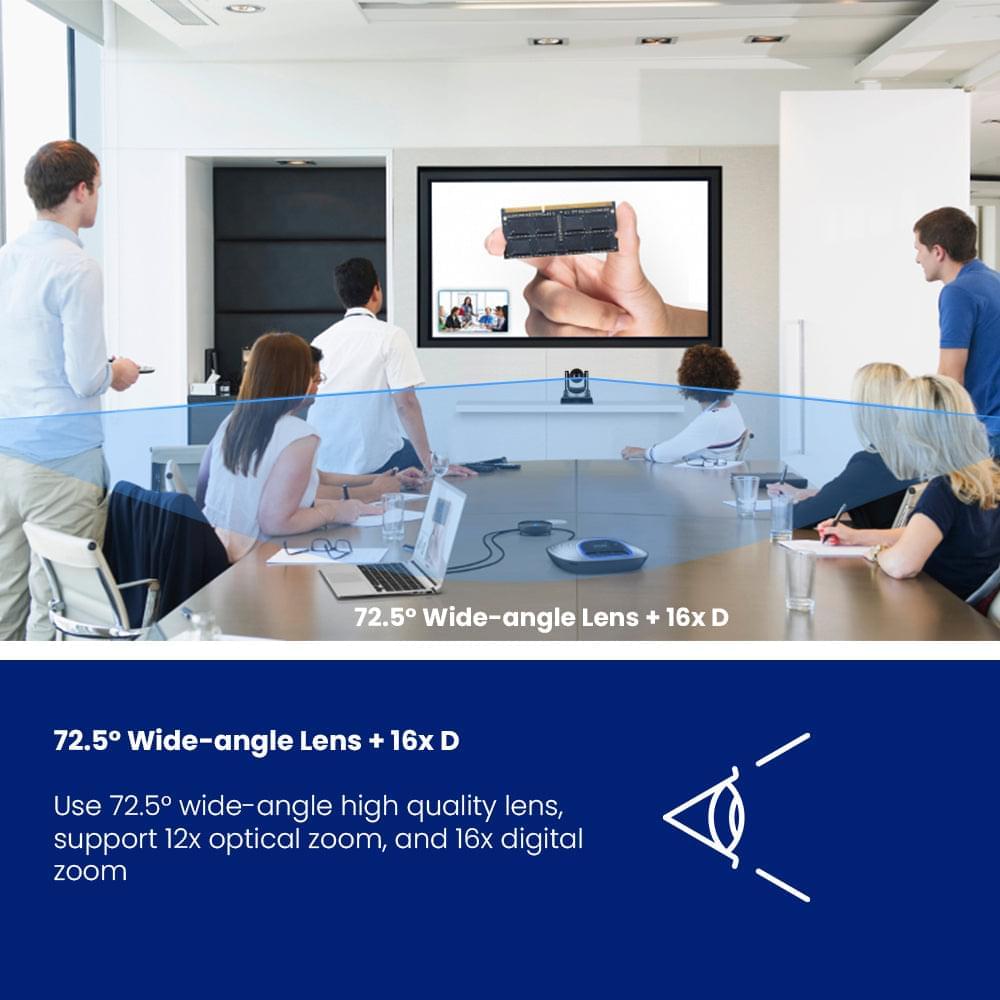

72.5° Wide-angle Lens + 16x D

Use 72.5° wide-angle high quality lens, support 12x optical zoom, and 16x digital zoom

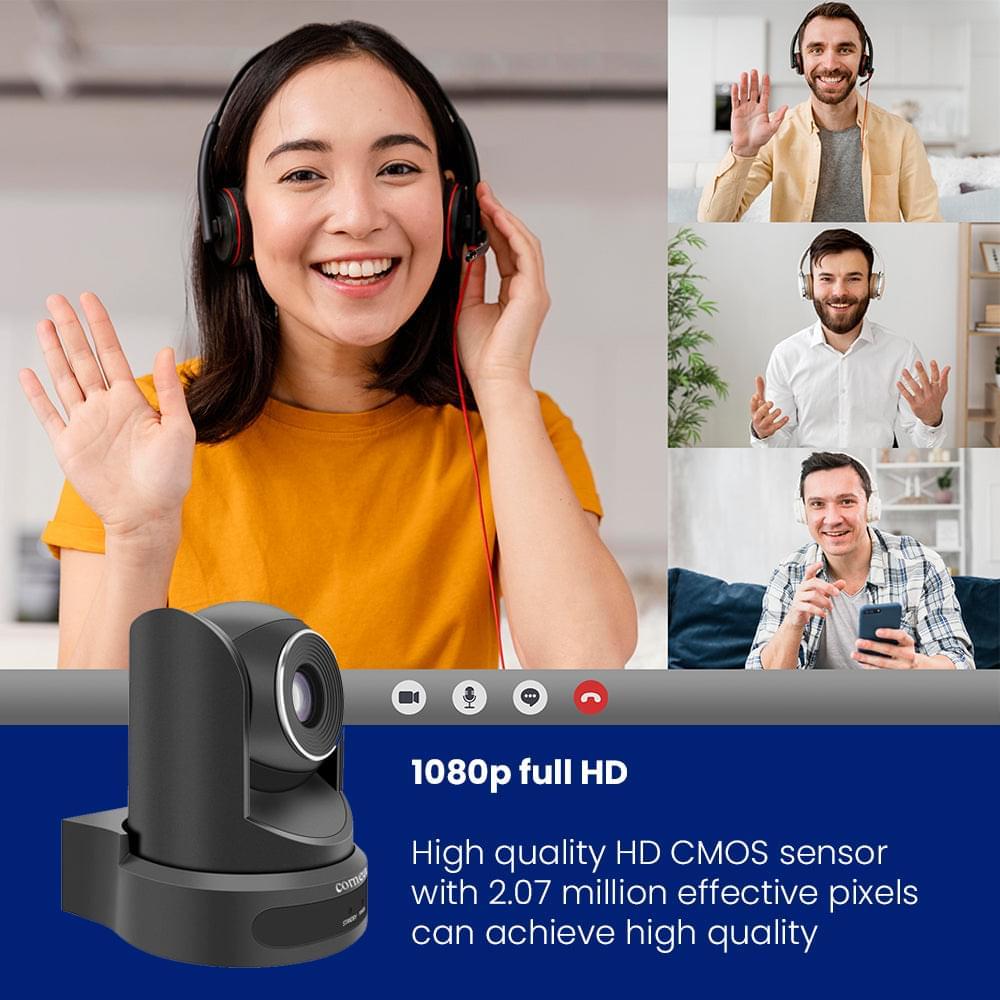

1080p Full HD

A 1080p Full HD video conferencing camera is a high-quality camera that can capture video in 1080p resolution, providing clear and sharp video for video conferences. With its advanced features, this camera allows for smooth and seamless communication in video conferences, making it an ideal tool for remote work, distance learning, and virtual meetings. It offers a wide field of view, clear audio, and excellent image quality, ensuring that participants can see and hear each other clearly. With its superior video quality, this camera can help improve collaboration and productivity in virtual meetings, as well as enhance the overall experience of remote communication.

Low-Light

A low light video conferencing camera is a type of camera designed to capture clear and high-quality video footage in low-light conditions. It utilizes advanced imaging technology such as image sensors with larger pixels, faster lenses, and better noise reduction to deliver superior video quality even in dimly lit environments. With the increasing demand for remote work and virtual meetings, a low light video conferencing camera is an essential tool for professionals who need to communicate effectively in low light conditions. By providing clear, high-quality video, a low light video conferencing camera ensures that participants can see each other clearly, even in poorly lit rooms, and helps to eliminate distractions caused by poor video quality.

72.5 Degree Wide-angle Lens

A 72.5 wide-angle lens video conferencing camera is an advanced camera system designed to capture a wider view of a conference room or meeting space during video conferencing sessions. With a wide-angle lens of 72.5 degrees, this camera can capture a larger field of view, making it ideal for larger rooms or meetings with multiple participants. It allows for clear and crisp video quality, enabling remote participants to see all the participants in the room and capture important details. This type of camera is commonly used in professional settings like corporate boardrooms, classrooms, and courtrooms to provide an immersive and inclusive video conferencing experience. Overall, a 72.5 wide-angle lens video conferencing camera is an essential tool for remote communication, enabling effective collaboration and seamless communication between participants.

12x Optical Zoom

A 12x optical zoom video conferencing camera is a camera that can zoom in and out up to 12 times its original size without losing image quality. This camera is ideal for video conferencing, as it can capture clear and detailed images even when the subject is far away. With its advanced features, this camera provides a more engaging and immersive experience in video conferences, allowing participants to see facial expressions and body language more clearly. The camera's high-quality zoom function enables it to capture important details and nuances, which can enhance communication and collaboration in virtual meetings. Additionally, this camera is highly versatile and can be used in a variety of settings, including classrooms, boardrooms, and other professional environments. With its advanced zoom capabilities, this camera is an essential tool for businesses, educators, and professionals who require high-quality video conferencing.
