Description
Camera

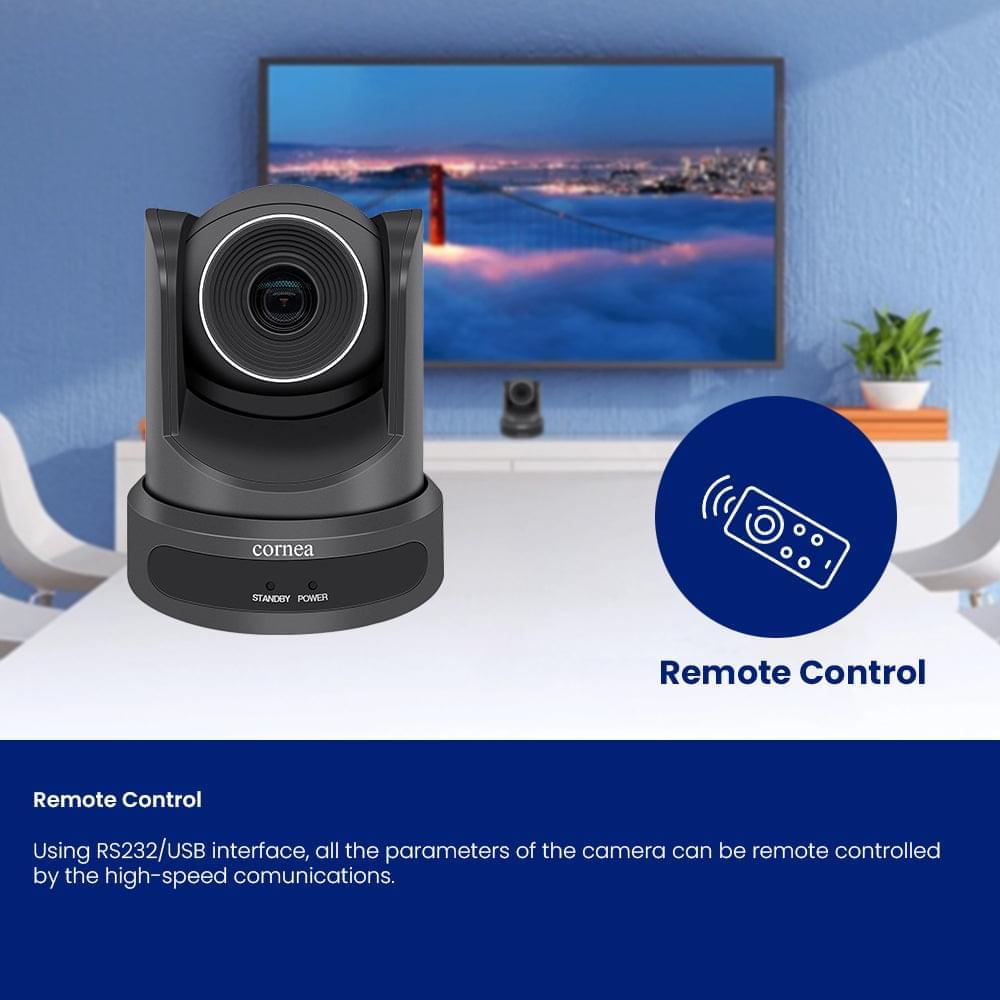

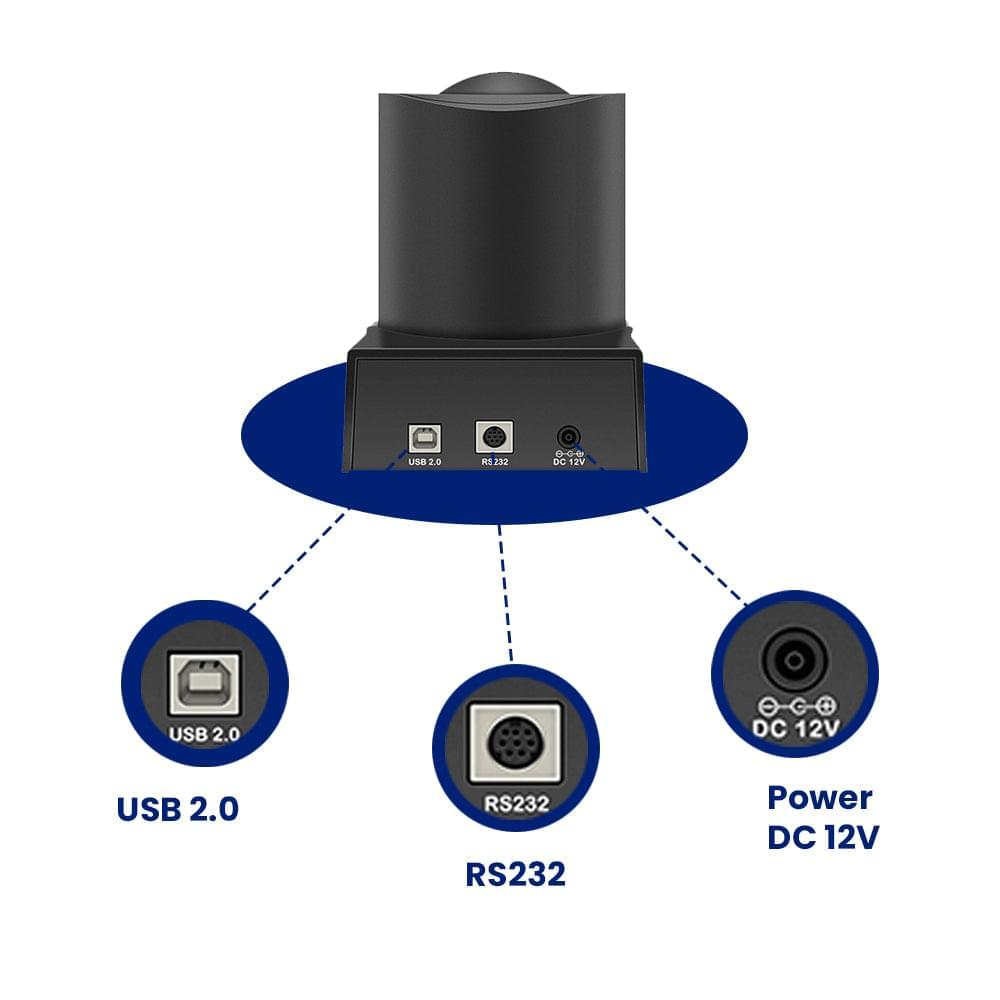

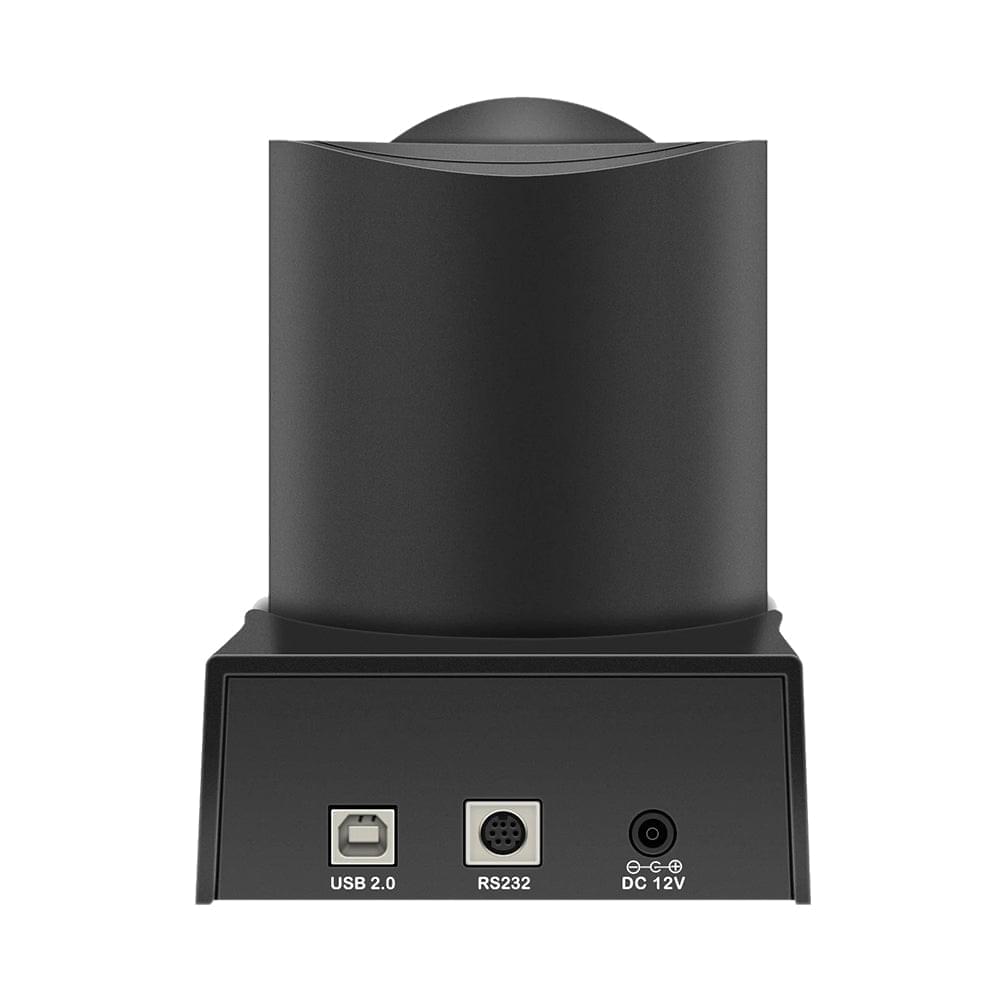

Model Cornea Vision 10 Sensor 1/2.8''SONY CMOS Effective pixel 2.38 mega pixel Video output pixel 1080p@60/50/30/25fps, 720p@60/50/30/25fps Zoom 10x optical zoom Lens f=5.76-46.09mm Aperture F1.8-2.6 Horizontal angle 54.7°(W)-6.8°(T) Video output USB3.0, HDMI Video resolution 1080P (1920 *1080) Siginal standard NTSC/PAL Preset position 64 Control temernal RS-232,RS485 Shutter 1/30s～1/10000s, auto Baud Rate 38400/9600bps Control protocol VISCA, PELCO-D, PELCO-P(RS-232, RS485) USB protocol UVC1.1 Minimal Illumination 0.1Lux SNR ≥50dB Video encoding format H.264, MJPEG, YUV Horizontal Rotation 350°（±175°）0.1°/s～100°/s Vertical Rotation 90°（±45°）0.1°/s～80°s Power supply DC 12V/2A Power comsumption 12W
