Name: Cornea MG Series Active LED Video Wall – Indoor & Outdoor (P1.9 to P3.91)
Brand: CORNEA
Price: 50000.00 INR
Availability: InStock

Cornea MG Series Active LED Video Wall – Indoor & Outdoor (P1.9 to P3.91)

Cornea MG Series Active LED Video Wall – Indoor & Outdoor (P1.9 to P3.91)

Rs. 50,000.00

Brand:

CORNEA

Availability:

Out of stock In stock

Description

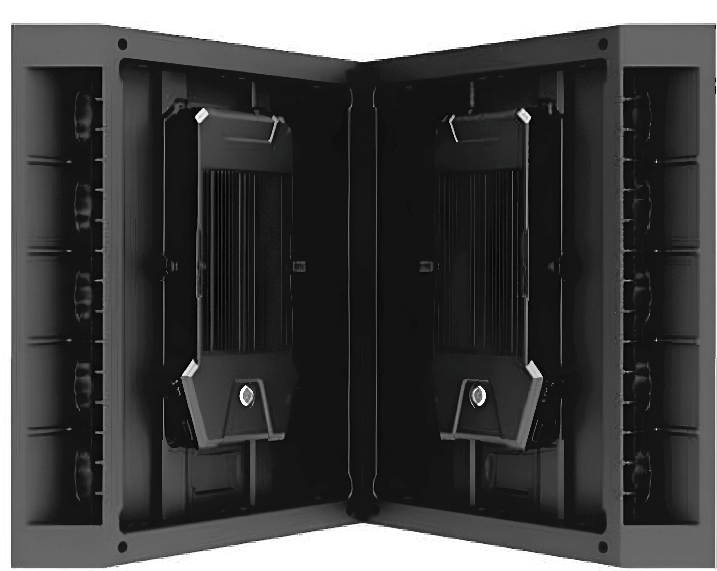

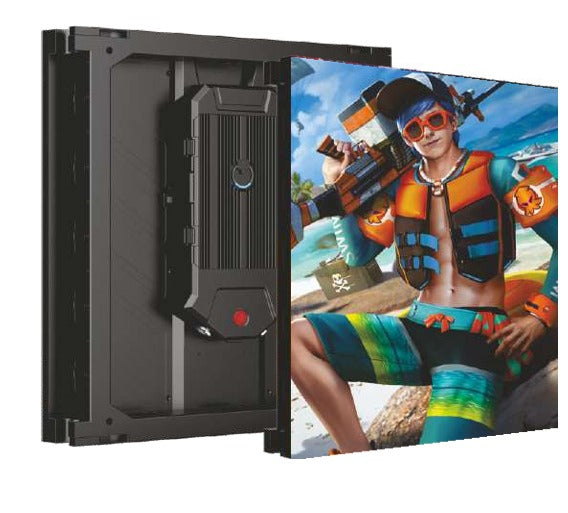

Cornea MG Series Active LED Video Wall is a modular, seamless display made of standard 500 × 500 mm cabinets. It comes in indoor (MG10S) and outdoor (MG9S) versions in five pixel pitches, for boardrooms, auditoriums, retail spaces, storefronts and building facades.

Key Features

Pixel pitch options: P1.9, P2.6, P2.8 (Indoor) | P2.9, P3.91 (Outdoor)
Lightweight Nano Polymer cabinet, 5.4 to 7.5 kg per cabinet
Refresh rate 3840–7680 Hz for smooth, flicker-free video
Brightness up to 1000 nits indoor and 4500 nits outdoor
IP65 protection on outdoor models
NovaStar control system
Cube formation for corner and 3D installations
Corner protection and efficient heat dissipation

Note: In the P3.91 outdoor video wall, we can customize the wall in any required size, and we provide a compatible controller for the respective video wall size.

Specifications

Model	P1.9 Indoor	P2.6 Indoor	P2.8 Indoor	P2.9 Outdoor	P3.91 Outdoor
Series	MG10S	MG10S	MG10S	MG9S	MG9S
Pixel Pitch (mm)	1.9	2.6	2.84	2.9	3.9
LED Type	3-in-1 SMD1212	3-in-1 SMD1515		3-in-1 SMD1516	3-in-1 SMD2020
Brightness (nits)	800	800–1000		4000	4500
Pixels per Cabinet	256 × 256	192 × 192	176 × 176	168 × 168	128 × 128
Pixel Density (dots/m²)	262,144	147,456	123,904	112,896	65,536
Cabinet Weight (kg)	7.5	6.6	6.2	6.3	5.4
Module Size (W × H, mm)	500 × 250	250 × 250
Cabinet Size (W × H × D, mm)	500 × 500 × 73			500 × 500 × 71	500 × 500 × 79
Material	Nano Polymer
Control System	NovaStar
Refresh Rate	3840–7680 Hz
Environment	Indoor			Outdoor
IP Rating	IP40		IP50	IP65	IP65
