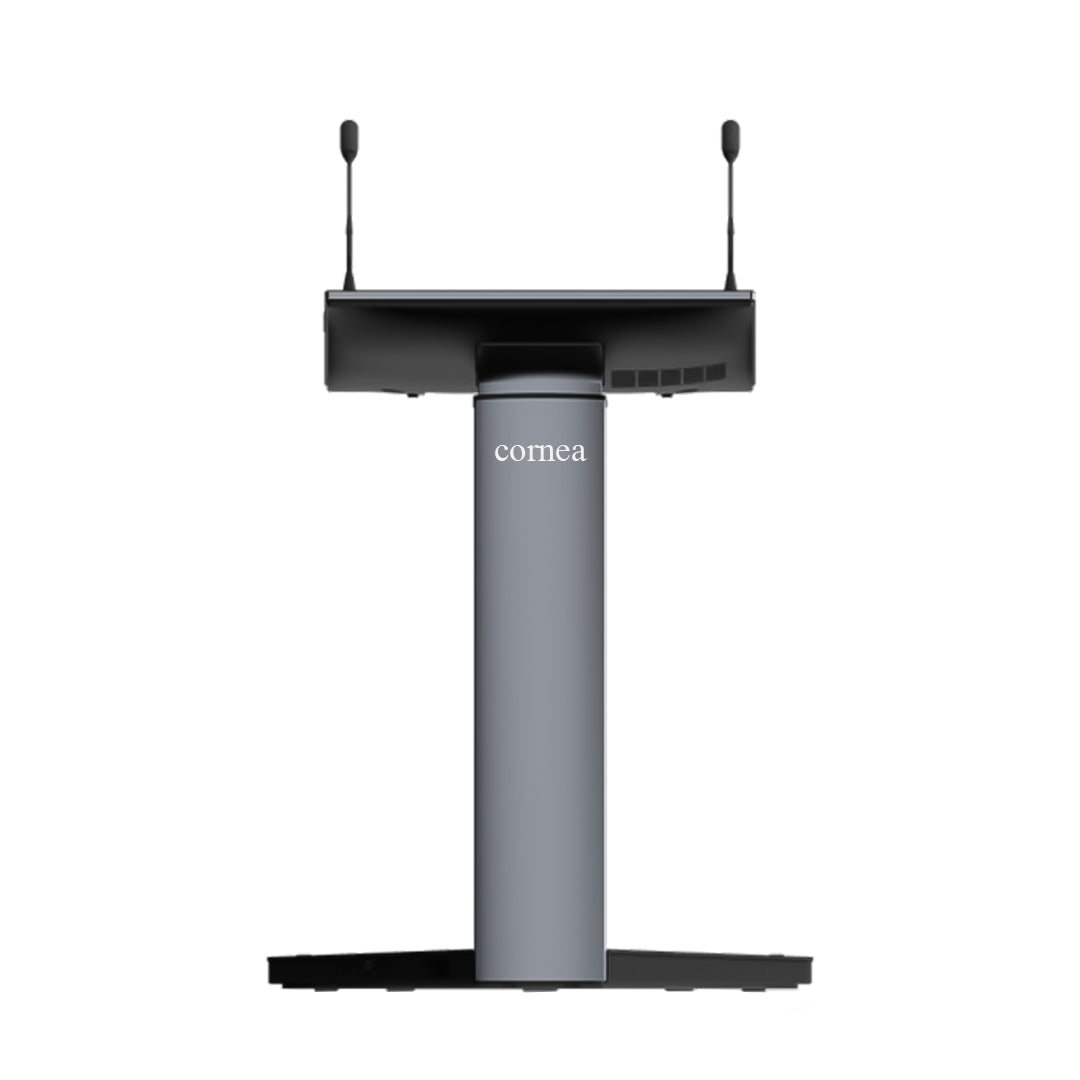

Cornea Orator Series
Electric Lectern & Smart Digital Podium
Speak Smarter. Present Better.
A Windows-based digital podium with a 21.5″ Full HD touch display, an integrated Windows 10 PC (Intel Core i5, 8 GB RAM, 256 GB), wireless screen sharing, two gooseneck microphones and electric height adjustment from 1.0 m to 1.2 m.
Built for smart classrooms, lecture halls, auditoriums, corporate boardrooms, government training centres and conference rooms.
- Available for purchase through GeM
- Registered OEM · white-label supply
- Indian company, head office in Pune
Product video
See the Cornea Digital Podium in Action
A 40-second look at the Orator: the base and lift column, the gooseneck microphones, Windows and the active pen on the 21.5″ touch display, and its key features.
- 21.5″ Full HD touch display
- Windows 10 64-bit · Intel Core i5
- 8 GB RAM · 256 GB storage
- 10-point touch + active pen
- Wireless screen sharing
- Electric height 1.0–1.2 m
- 2 gooseneck microphones
- XLR · 6.5 mm · 3.5 mm audio out
Product tour
Everything You Need. Built Into One Podium.
The Cornea Orator brings the touch display, a Windows PC, wireless screen sharing, a built-in microphone system and electric height adjustment together in one digital podium.
-

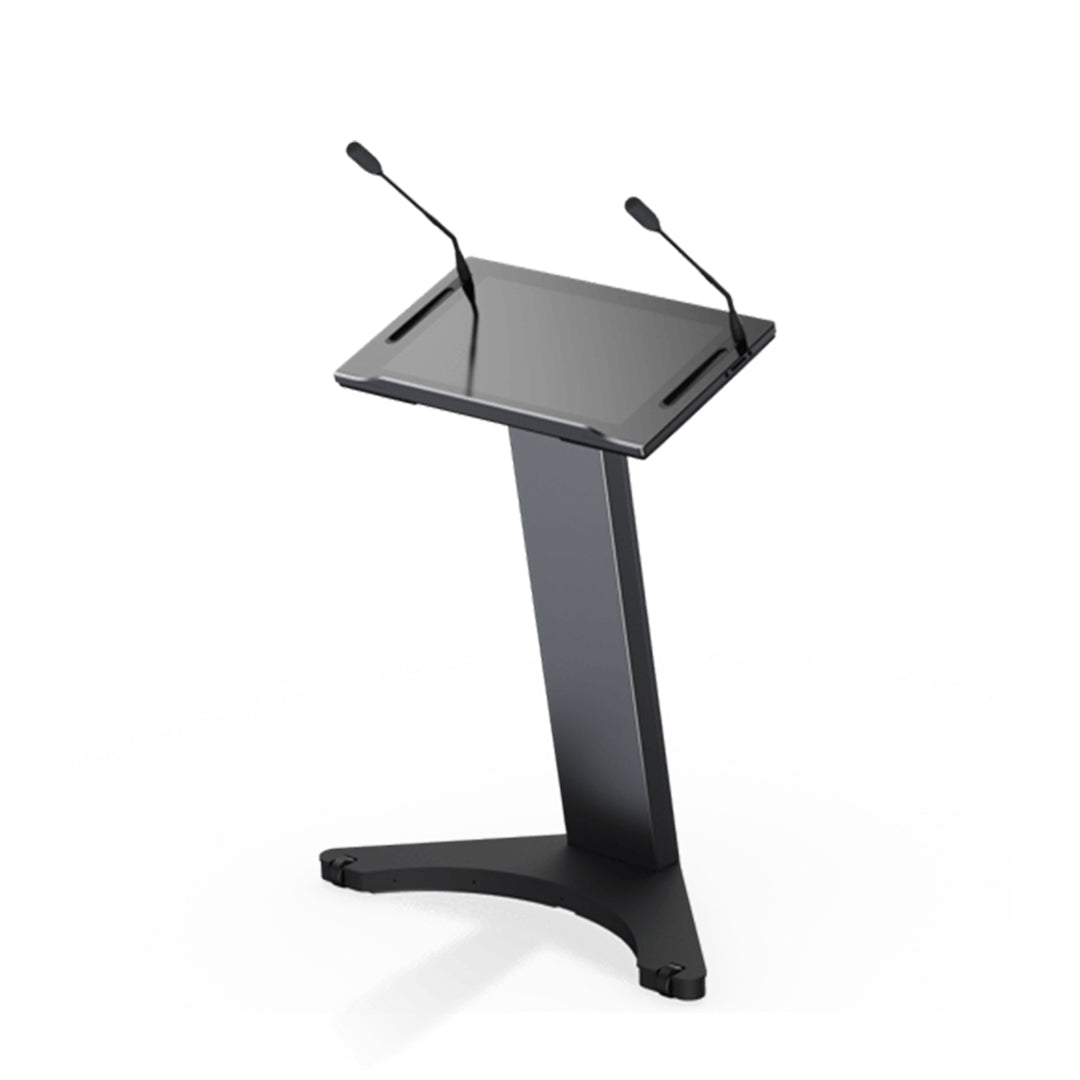

21.5″ Full HD touch display
1920 × 1080 at 60 Hz, 10-point capacitive touch, active pen support and palm rejection.
-
Integrated Windows PC
Windows 10 64-bit, Intel Core i5, 8 GB RAM and 256 GB storage on the OPS72C PC module.
-
Built-in microphone system
Two gooseneck microphones with a 0–0.3 m pickup distance and a microphone switch on the lectern.
-
Wireless screen sharing
Share to the lectern without cables: screen sharing runs in AP mode at 5 GHz, with dual-band Wi-Fi.
-
Electric height adjustment
Height up and height down keys move the lectern between 1.0 m and 1.2 m at 0.9 cm/s. Two wheels for positioning.
-
Professional AV connectivity
HDMI IN and AUDIO IN at the top of the column, two HDMI outputs, XLR, 6.5 mm and 3.5 mm audio outputs and Gigabit Ethernet.
Typical lectern setup
- Separate laptop
- Separate microphone
- Cables between devices at the lectern
- Fixed podium height
Cornea Orator
- 21.5″ Full HD touch display built in
- Integrated Windows 10 PC
- Two gooseneck microphones
- Wireless screen sharing
- Electric height adjustment, 1.0–1.2 m
Windows-based digital podium
Powered by Windows. Built for Productivity.
Powered by the Windows operating system, the Cornea smart lectern provides a familiar computing experience. Presenters run their material directly from the podium, with no separate laptop needed to start a session.
- Run your favourite applicationsMicrosoft Office, PDF readers, browsers, video conferencing platforms and industry-specific software.
- Secure & reliableBuilt-in Windows security features help protect data, users and institutional resources.
- Advanced productivityCreate, edit, present and collaborate with the same tools you use on a desktop or laptop.
Application software and licences depend on the configuration supplied. Confirm with Cornea.
- Operating system
- Windows 10 (64-bit)
- Processor
- Intel Core i5
- RAM
- 8 GB
- Storage (ROM)
- 256 GB
- PC module
- OPS72C
- Wireless module
- SI04B
Interactive podium · touch and annotation
Touch. Write. Engage.
Deliver interactive presentations with a responsive 21.5″ capacitive touch display and real-time annotation. Write on slides with the included active pen, mark up diagrams and control applications directly at the podium.
- Smooth writing experience
- Active pen support
- Palm rejection technology
- Full HD clarity
- Multi-touch interaction
- Touch
- 10-point capacitive
- Input
- Finger + active capacitance pen
- Accuracy
- ±1.5 mm
- Minimum object size
- 6 mm
- Display
- 21.5″, 1920 × 1080
- Brightness
- 450 cd/m² (typ., with glass)
Wireless presentation
Share Instantly. Collaborate Effortlessly.
Present from your own device without cables. The Orator’s wireless screen sharing runs in AP mode at 5 GHz, and dual-band Wi-Fi connects the built-in PC to the room network, so presenters can switch between speakers quickly and annotate shared content in real time.
- Dual-band Wi-Fi
- Wireless screen sharing
- Cable-free presentations
- Real-time annotation
- Wi-Fi
- 802.11 a/b/g/n/ac
- Wi-Fi bands
- 2.4 GHz + 5 GHz
- Wi-Fi range
- 0–10 m
- Screen sharing
- AP mode, 5 GHz
Height-adjustable podium
Adjust to Every Presenter.
The integrated electric lift system adjusts the lectern smoothly between 1.0 m and 1.2 m for ergonomic comfort, suited to educators, presenters and speakers of different heights.
- Electric height controlHeight up and height down keys on the lectern
- Ergonomic designWorking height from 1.0 m to 1.2 m
- Flexible positioningTwo wheels to reposition the lectern
- Smooth operation0.9 cm/s, up and down
Podium with microphone · audio and connectivity
Clear Voice. Every Time.
Integrated dual microphones and multiple professional audio outputs make the smart lectern suited to lectures, conferences and public-speaking environments. Feed the room’s sound system through the XLR, 6.5 mm or 3.5 mm outputs, and send content to the room display over two HDMI outputs.
Pair it with a Cornea interactive flat panel or a Cornea large format display as the main room display.
Audio coverage in the room depends on the connected sound system.
Video & data
- 1 ×HDMI IN (top of column)
- 2 ×HDMI OUT (lectern screen, column chassis)
- 3 ×USB 2.0 (2 on the side, 1 for upgrades)
- 1 ×RJ45, 10/100/1000 Mbps
Audio & microphones
- 2 ×Gooseneck microphones (built in)
- 2 ×MIC IN
- 1 ×XLR (Cannon) AUDIO OUT
- 1 ×6.5 mm AUDIO OUT
- 2 ×3.5 mm AUDIO OUT
- 1 ×3.5 mm AUDIO IN (top of column)
Wireless
- Wi-Fi 802.11 a/b/g/n/ac
- 2.4 GHz + 5 GHz
- Screen sharing, AP mode, 5 GHz
Power
- 1 ×AC IN, 100–240 V~ 50/60 Hz
- 1 ×DC IN, 19 V / 6.31 A
- 120 W maximum power
Smart classrooms and lecture halls
Digital Podium for Smart Classrooms & Lecture Halls
In classrooms and lecture halls, the Orator gives teachers one height-adjustable station for slides, annotation and teaching material, with the classroom display connected over HDMI. See Cornea education display solutions.
- Write on slides with the active pen
- Share from a teacher’s laptop wirelessly
- Set the height for each teacher
- TeacherPresents from the lectern
- Cornea OratorTouch, pen and Windows PC
- Classroom displayInteractive flat panel or projector over HDMI OUT
- Students
Corporate boardrooms and conference rooms
Smart Podium for Boardrooms & Conference Rooms
In boardrooms and conference rooms, the Orator keeps the presenter’s PC, microphones and screen sharing at one station, so each speaker can share and present from one place. See Cornea corporate display solutions and Cornea PTZ cameras for hybrid rooms.
- Speakers share wirelessly from their own devices
- Built-in Windows PC for scheduled presentations
- Audio outputs for the room sound system
- Speaker’s deviceWireless screen sharing
- Cornea OratorIntegrated Windows PC
- Room displayConnected over HDMI OUT
- Room cameraOptional, for hybrid meetings
Government training centres
Digital Lectern for Government Training Centres
In government training centres and conference halls, the Orator works as a shared presentation workstation: each speaker adjusts the height, presents from the built-in PC and speaks into the lectern microphones. Cornea supplies government buyers through GeM.
- One station for many speakers
- Electric height from 1.0 m to 1.2 m
- XLR output to the hall PA system
- Speaker or trainerAdjusts height at the lectern
- Cornea OratorMicrophones and Windows PC
- Hall PA systemXLR AUDIO OUT
- Hall displayHDMI OUT
Auditoriums and events
Electronic Podium for Auditoriums
On stage, the Orator connects to the auditorium’s audio mixer through its XLR output and sends presentation content to the main screen over HDMI, such as a Cornea LED video wall. Two wheels make it easy to reposition within the venue.
- XLR output for the mixer or PA
- HDMI OUT to the main screen
- Two wheels for positioning on stage
- Gooseneck microphonesBuilt into the lectern
- Cornea OratorPresenter’s workstation
- Mixer or PAXLR AUDIO OUT
- Main screenLED wall or large display over HDMI
Cornea Orator Series Electric Lectern
Digital Podium Specifications
| Size | 21.5 inch |
|---|---|
| Aspect ratio | 16:9 |
| Resolution | 1920 (H) × 1080 (V) |
| Display area | 476.064 (H) × 267.786 (V) mm |
| Pixel pitch | 0.24795 × 0.24795 mm |
| Refresh rate | 60 Hz |
| Response time | 14 ms |
| Display colour | 16.7M (8-bit) |
| Colour gamut | 72% NTSC |
| Contrast ratio | 1000:1 |
| Viewing angle | 178° (H/V) |
| Backlight | ELED |
| Brightness with glass (typ.) | 450 cd/m² |
| Lifetime | ≥ 30,000 hours |
| Sensing type | Capacitive |
|---|---|
| Touch tool | Finger, active capacitance pen |
| Touch points | 10 |
| Accuracy | ±1.5 mm |
| Minimum object size | 6 mm |
| Palm rejection | Supported |
| Operating system | Windows 10 64-bit |
|---|---|
| CPU | Intel Core i5 |
| RAM | 8 GB |
| ROM (storage) | 256 GB |
| PC module | OPS72C |
| Wi-Fi version | 802.11 a/b/g/n/ac |
|---|---|
| Wi-Fi frequency | 2.4 GHz; 5 GHz |
| Wi-Fi operation distance | 0–10 m |
| Wireless screen share mode | AP |
| Screen share frequency | 5 GHz |
| Wireless module | SI04B |
| Quantity | 2 (gooseneck) |
|---|---|
| Pickup distance | 0–0.3 m |
| Podium lifting | Electric control |
|---|---|
| Speed up | 0.9 cm/s |
| Speed down | 0.9 cm/s |
| Minimum height | 1.0 m |
| Maximum height | 1.2 m |
| HDMI IN | 1 (top of column, for transfer) |
|---|---|
| HDMI OUT | 2 (lectern screen × 1, column chassis × 1) |
| USB 2.0 | 3 (2 on the side, 1 hidden for upgrades only) |
| RJ45 | 1 (10/100/1000 Mbps) |
| MIC IN | 2 |
| AUDIO OUT (6.5 mm) | 1 |
| AUDIO OUT (3.5 mm) | 2 (lectern screen × 1, column chassis × 1) |
| AUDIO OUT (XLR / Cannon) | 1 |
| AUDIO IN (3.5 mm) | 1 (top of column, for transfer) |
| AC IN | 1 |
| DC IN | 1 (19 V / 6.31 A) |
| Physical keys | 4 (power, move up, move down, microphone switch) |
| Power requirements | 100–240 V~ 50/60 Hz 2.0 A / 19 V DC 6.31 A |
|---|---|
| Overall power (max.) | 120 W |
| Dimensions (L × H × D) | 786.3 × 420 × 1010.4 mm |
|---|---|
| Package (L × W × H) | 898 × 562 × 1148 mm |
| Wheels | 2 |
| Net weight | 29.9 kg |
| Gross weight | 43.0 kg |
| Operating temperature | 0 °C to 40 °C |
|---|---|
| Operating humidity | 10%–90% RH |
| Storage temperature | −20 °C to 60 °C |
| Storage humidity | 10%–90% RH |
| Altitude | Below 5000 m |
| Power cord | 1 |
|---|---|
| HDMI cable | 1 |
| HDMI adapter cable | 1 |
| Headphone adapter cable | 1 |
| Smart pen | 1 |
| Gooseneck microphone | 2 |
Values from the Cornea Orator Series specification sheet. Product images are for illustrative purposes only and may differ slightly in appearance, colour and size from the actual product; specifications may change in line with the latest product specification.
Why Cornea
More Than a Podium. Backed by Cornea.
Cornea is an Indian display and AV company, registered as an OEM, with its head office in Pune and branch offices across India. The Orator is part of a professional range that institutions can source, deploy and maintain through one supplier.
-
Head office in Pune
Office No. 1403, 14th Floor, Nyati Enthral, Kharadi South, Pune, Maharashtra.
-
Branch offices across India
Mumbai, Delhi, Bengaluru and Raipur.
-
Registered OEM
Cornea is registered as an OEM and supplies partners under their own brand.
-
Government supply through GeM
Cornea supplies government departments and institutions through the Government e-Marketplace.
-
Product and technical support
Pre-sales guidance and technical support from the Cornea team.
-
Display and AV expertise
Interactive flat panels, LED video walls, large format displays, digital signage and PTZ cameras from one supplier.
Government procurement
Available for Purchase Through GeM
Cornea supplies government departments and institutions through the Government e-Marketplace (GeM), including electronic lecterns for training and conference use. Request a quote to receive the current GeM listing details for the Orator Series, or see Cornea on GeM.
FAQ
Digital Podium FAQs
What is a digital podium?
A digital podium, also called a smart podium, electronic podium or digital lectern, is a presentation lectern with a built-in display, computer, microphones and connectivity, so the presenter can run and control content from the lectern itself. The Cornea Orator Series combines a 21.5″ Full HD touch display, an integrated Windows 10 PC, two gooseneck microphones, professional audio outputs and electric height adjustment in one unit.
What is the price of the Cornea digital podium?
Digital podium prices depend on the configuration, quantity and delivery location. Select Request a Quote and Cornea will send a quotation for the Orator Series, including GeM listing details for government buyers.
Does the Cornea Orator have a built-in Windows PC?
Yes. The integrated OPS72C PC module runs Windows 10 64-bit with an Intel Core i5 processor, 8 GB RAM and 256 GB storage, so presentations, Microsoft Office, PDF readers, browsers and video conferencing platforms run directly from the podium.
Does it support wireless screen sharing?
Yes. Wireless screen sharing runs in AP mode at 5 GHz. The Wi-Fi module (SI04B) supports 802.11 a/b/g/n/ac on 2.4 GHz and 5 GHz, with an operation distance of 0–10 m.
Does it support touch and active pen input?
Yes. The 21.5″ display has 10-point capacitive touch and works with a finger or an active capacitance pen, with ±1.5 mm accuracy, a 6 mm minimum object size and palm rejection. A smart pen is included.
How high can the lectern be adjusted?
The electric lift adjusts the lectern from 1.0 m to 1.2 m at 0.9 cm/s up and down, using the height up and height down keys on the lectern.
What audio and video connections are available?
Audio outputs: 1 × XLR (Cannon), 1 × 6.5 mm and 2 × 3.5 mm. Audio inputs: 2 × MIC IN and 1 × 3.5 mm AUDIO IN. Video and data: 1 × HDMI IN, 2 × HDMI OUT, 3 × USB 2.0 (two on the side, one hidden for upgrades only) and 1 × RJ45 (10/100/1000 Mbps). Two gooseneck microphones are built in, with a 0–0.3 m pickup distance.
What are the power requirements?
100–240 V~ 50/60 Hz 2.0 A / 19 V DC 6.31 A, with a maximum overall power of 120 W.
Is the Cornea Orator available on GeM?
Cornea supplies government buyers through the Government e-Marketplace (GeM). Request a quote to receive the current GeM listing details for the Orator Series.
Does Cornea offer white-label or OEM supply?
Yes. Cornea is registered as an OEM and offers white-label and OEM supply for partners. Volumes and branding requirements are agreed with the Cornea team.
What comes in the box?
A power cord, an HDMI cable, an HDMI adapter cable, a headphone adapter cable, a smart pen and two gooseneck microphones.
How do I request a quotation?
Select Request a Quote on this page and complete the enquiry form. Include the quantity, where the digital podium will be used and which display it needs to connect to.
Present with Confidence.
The Cornea Orator lectern combines technology, mobility and intelligent collaboration to deliver a seamless presentation experience for modern institutions. Tell us where it will be used and we will send a quotation.
